Rainwater harvesting for sports complexes

Rainwater harvesting in sports complexes captures precipitation from large roof areas and playing surfaces for non-potable uses like irrigation, toilet flushing, and cooling, significantly reducing reliance on mains water, cutting costs, and managing stormwater. Systems use gutters, filters (like Vortex filters), first-flush diverters, and storage tanks (often underground) to collect, clean, and store water, with some advanced systems featuring automated controls for monitoring and distribution, making venues more sustainable and resilient to drought.

What is rainwater harvesting?

Rainwater harvesting is the process of collecting and storing rainwater from surfaces like roofs, parks, and roads for later use, instead of letting it run off, to supplement water supply, recharge groundwater, and reduce urban flooding. This collected water can be used for irrigation, toilet flushing, laundry, or, with proper treatment, for drinking, easing demand on municipal supplies and conserving precious groundwater.

The  Key Components of Rainwater Harvesting for sports& How They Work?

Rainwater harvesting systems for sports facilities typically use large roof areas (stadium seating, clubhouses, covered courts) to capture water, which is then filtered, stored in large tanks, and distributed for non-potable uses like irrigation and toilet flushing.

Key Components and How They Work

Component	Function	How it Works for Sports Facilities
Catchment Area	The surface where rainfall is initially collected.	Large, impervious surfaces like stadium roofs, practice facility covers, and even specially designed porous playing surfaces receive the rain. The larger the area, the more water is harvested.
Conveyance System	Transports water from the catchment area to the storage system.	Gutters and downspouts (often oversized for high-intensity rain) channel the water away from the structure and into pipes or drains. These should have a sufficient slope to prevent standing water and sediment build-up.
Pre-Filtration	Removes large debris, dust, and initial contaminants.	Includes gutter guards and downspout screens (leaf eaters) to stop leaves and large debris. A first-flush diverter is crucial; it automatically flushes the initial, dirtiest flow of water (containing accumulated pollutants from the dry season) away from the main storage tank, ensuring cleaner water is collected.
Filtration System	Further purifies the water before it enters the main tank.	A filter chamber, often containing layers of coarse sand, gravel, and/or fine mesh, removes smaller suspended particles. For commercial systems, a vortex fine filter or specialized industrial filtration units may be used for enhanced water quality.
Storage Tank	Securely holds the filtered rainwater for future use.	Large-capacity tanks (cisterns) – made of plastic, fiberglass, or concrete – are used, often positioned underground or in conjunction with the facility’s structure (e.g., under the playing field). Features like a calmed inlet (to avoid disturbing sediment) and an overflow pipe (to divert excess water to a garden or storm drain) are essential.
Distribution System	Delivers the water to its final point of use.	Pumps (submersible or external) and booster pump sets are typically used to create the necessary pressure and flow for irrigation systems, sprinklers, or internal plumbing (e.g., toilet flushing). The system uses a dedicated network of pipes to supply the non-potable water.
Treatment System (Optional/Advanced)	Provides disinfection for specific, higher-purity applications.	If the water is used indoors for cleaning or other sensitive uses, additional post-tank filtration (e.g., fine cartridge filters, carbon filters) and disinfection (e.g., UV light or chlorination) may be included to eliminate pathogens and improve water quality.
Controls and Monitoring	Manages the system’s operation and ensures a reliable supply.	Control panels and float switches monitor water levels, activate pumps, manage the backup connection to the mains water supply if the tank runs dry, and may include advanced features like weather monitoring to predict rainfall.

The Advantages of rainwater harvesting for sports complexes

Rainwater harvesting (RWH) offers critical operational and environmental benefits for sports complexes, primarily by leveraging their vast roof and ground surface areas to manage high water demands for irrigation and maintenance.

Key Advantages for Sports Complexes

• • Operational Cost Reduction: Large facilities can significantly lower utility bills. Case studies show that RWH systems can reduce monthly water bills by up to 54% and annual costs by approximately 33–41%.

• • Ideal for Irrigation: Rainwater is naturally “soft” (limescale-free) and contains nitrates that promote turf health. Its use prevents limescale deposits in expensive irrigation sprayers and nozzles.

• • Stormwater and Flood Management: Large-scale capture reduces the volume and velocity of runoff from parking lots and roofs, alleviating pressure on aging municipal drainage systems and reducing local flood risks by up to 30%.

• • Compliance and Green Certification: Implementing RWH contributes significantly to achieving sustainability certifications like LEED or BREEAM, which can enhance the facility’s public image and market value.

• • Infrastructure Longevity: Because rainwater lacks the minerals found in hard tap water or groundwater, it extends the service life of pipes, pumps, and cleaning equipment.

Primary On-Site Applications

• • Turf Irrigation: The most common use, covering large areas like football pitches, tennis clay courts, or equestrian arenas.

• • Sanitary Use: Harvested water can be treated for flushing toilets and urinals, which often accounts for a large portion of a stadium’s non-potable water demand during major events.

• • Facility Maintenance: Used for cleaning spectator stands, stable facilities, or cooling towers in arenas.

• • Dust Suppression: Binding dust on clay tennis courts or sand-based indoor arenas.

Financial Incentives

• • Tax Benefits: Many jurisdictions offer property tax exemptions or sales tax breaks for installing water conservation equipment.

• • Avoided Sewer Charges: In some regions, properties are charged for the amount of rainwater they drain into public sewers; RWH systems can qualify facilities for exemptions or reductions in these fees.

What are the Principle of rainwater harvesting at sports facilities

The principle of rainwater harvesting (RWH) at sports facilities is based on capturing precipitation from large catchment surfaces such as stadium roofs, spectator stands, and playing fields and channeling it through a filtration system for storage or immediate reuse. This decentralized water management strategy leverages the massive footprint of sports complexes to reduce operational costs and municipal water dependency.

Core Components of the System

• • Catchment Area: The primary surfaces where rain falls. In sports complexes, these include expansive roofs of stadiums, pavilions, administrative blocks, and even the playing surfaces themselves.

• • Conveyance System: Gutters and downspouts that collect and transport water from rooftops. For large stadium roofs, these are often designed to handle high-intensity rainfall by being oversized by 10–15%.

• • Filtration & First Flush:

    • • First Flush Diverter: A valve or pipe that discards the initial few minutes of rainfall, which typically carries the highest concentration of pollutants, dust, and debris from the catchment surface.
    • • Filters: Multi-stage units (using mesh, sand, or gravel) that remove suspended particles and organic matter before the water enters storage.

• • Storage Reservoir: Large tanks (underground or above-ground) made of concrete, HDPE, or reinforced masonry. Some innovative designs place these directly beneath the playing surface to maximize space.

• • Distribution & Pump System: Automated units that maintain required operating pressure to deliver harvested water for on-site applications like turf irrigation or toilet flushing.

Advanced Integration Principles

• • Permeable Playing Surfaces: Modern stadiums may use a three-layer permeable membrane for the playing field (porous top layer, fine netting, and a structural bottom layer). This allows the entire field to act as a pre-filter, draining directly into a reservoir located below.

• • Dual-Purpose Management: Systems are designed not just for water supply but also for stormwater management. By holding large volumes of water during peak events, they alleviate pressure on local drainage infrastructure and reduce urban flooding.

• • Groundwater Recharge: In some complexes, excess water that exceeds storage capacity is directed into recharge pits or trenches to replenish local aquifers rather than being lost to sewers.

Rainwater Harvesting in Sports Complexes: Design, Benefits & Best Practices

Implementing rainwater harvesting (RWH) in sports complexes involves leveraging massive catchment areas like stadium roofs and playing fields to meet high water demands for irrigation and maintenance.

System Design and Architecture

• • Catchment and Conveyance: Stadium roofs (e.g., Levi’s Stadium) and paved areas act as primary catchments. Design involves oversized gutters (typically 10–15% larger) to handle high-intensity storms and vacuum drainage systems for efficient transport to storage.

• • Filtration and First Flush: Standard practice includes first-flush diverters to discard initial pollutant-laden runoff and multi-stage filters (mesh, sand, or wall-mounted) to remove debris.

• • Storage and Distribution: Water is stored in underground or modular tanks, sometimes placed beneath the field to save space. Modern systems use automated controls and sensors to track water levels and quality, integrating with Building Management Systems (BMS) for predictive maintenance.

• • Groundwater Recharge: Overflow from storage is often directed to recharge pits or borewells to replenish local aquifers rather than entering municipal sewers.

Operational Benefits

• • Significant Cost Reduction: Facilities can reduce municipal water bills by 33–54%. Some studies indicate a payback period of 7–12 years, well within the lifespan of the infrastructure.

• • Improved Turf Quality: Rainwater is naturally “soft” (limescale-free), preventing buildup in expensive irrigation nozzles and providing nitrates that benefit turfgrass.

• • Stormwater Mitigation: Large-scale harvesting reduces local flood peaks by capturing peak runoff, alleviating strain on aging urban infrastructure.

• • Independence and Resilience: RWH provides a backup supply during municipal shortages or droughts, ensuring operational continuity for events.

Best Practices for 2026

• • Integrated Multi-Disciplinary Planning: Engagement between architects, civil engineers, and landscape architects is essential to maximize LEED points and ensure system efficiency.

• • Regular Maintenance Schedules: Quarterly logs for cleaning gutters, filters, and tanks are recommended to prevent bacterial growth and maintain flow rates.

• • Permeable Surfaces: Incorporating permeable pavements in parking lots and plazas increases surface runoff collection while reducing heat island effects.

• • Legislative Compliance: Facilities must adhere to updated 2026 mandates, such as those in India requiring rooftop collection for all new commercial builds over 100 sq. m.

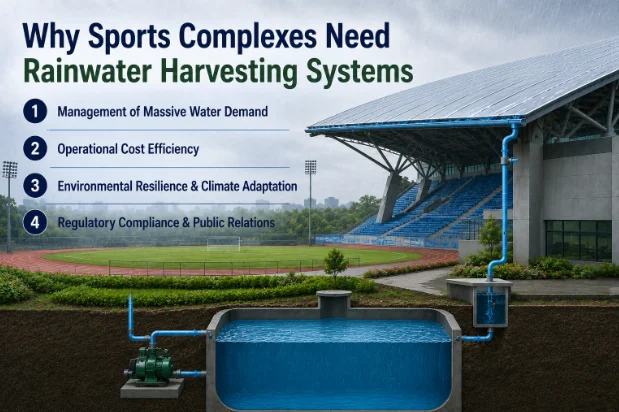

Why Sports Complexes Need Rainwater Harvesting Systems

Sports complexes require rainwater harvesting (RWH) systems due to their exceptionally high non-potable water demands and expansive catchment areas, which make them ideal for sustainable water management.

1. Management of Massive Water Demand

Sports facilities consume vast quantities of water for maintenance activities that do not require treated drinking water.

• • Turf Irrigation: Keeping grass pitches in peak condition is the primary water use; insufficient watering leads to brittle surfaces and dry damage.

• • Dust Suppression: In 2026, RWH continues to be essential for binding dust on clay tennis courts and maintaining cushioning in sand-based equestrian arenas.

• • General Facility Operations: Stored rainwater is increasingly used for toilet flushing and cleaning equipment or spectator stands, especially during high-attendance events.

2. Operational Cost Efficiency

RWH systems provide significant financial relief for large-scale facilities in 2026.

• • Reduced Utility Bills: Systems can satisfy over 50% of a facility’s total water consumption, potentially reducing monthly water bills by up to 54%.

• • Avoided Sewerage Charges: Many modern jurisdictions charge for draining rainwater into public sewers; on-site collection often qualifies facilities for exemptions from these fees.

• • Equipment Longevity: Rainwater is naturally “soft” and lacks the limescale found in municipal or groundwater, which prevents residues from clogging expensive irrigation sprayers and nozzles.

3. Environmental Resilience & Climate Adaptation

As of 2026, climate change has made rainfall patterns more erratic, increasing the need for self-sufficient water sources.

• • Drought-Proofing: Facilities like Levi’s Stadium use recycled and harvested water to remain operational during drought-related municipal restrictions.

• • Stormwater Mitigation: Large complexes often create high runoff volumes that overwhelm urban sewers. RWH systems act as attenuation units, reducing local flood peaks and protecting surrounding infrastructure.

• • Groundwater Recharge: Excess harvested water can be directed into recharge pits to replenish local aquifers, a critical necessity in water-stressed regions.

4. Regulatory Compliance & Public Relations

• • Green Certifications: Implementing RWH is a primary way to gain points for LEED or BREEAM certification, enhancing the venue’s market value and public image.

• • Legal Mandates: In regions like India, 2026 regulations often require all new large-scale commercial constructions to include functional RWH systems.

How Rainwater Harvesting Reduces Water Costs in Sports Infrastructure

Rainwater harvesting (RWH) in sports infrastructure acts as a critical financial management tool by replacing expensive municipal supplies with free, on-site water for high-demand, non-potable uses.

Direct Cost Savings on Utility Bills

• • Monthly Savings: Research at major sports facilities shows that RWH systems can reduce monthly water and sewage bills by 33% to 54%.

• • Consumption Offsetting: Large catchment areas (stadium roofs and fields) allow facilities to satisfy over 50% of their total water demand using harvested rain. For a typical tennis complex, this equates to saving over 2,800 m³ of drinking water annually.

• • Sanitary Savings: Harvested water often accounts for 50–80% of total toilet flushing demand, a major cost driver during high-attendance events.

Indirect Financial and Technical Benefits

• • Limescale Reduction: Rainwater is naturally “soft.” Unlike hard tap water, it does not leave mineral deposits that clog expensive irrigation nozzles or damage maintenance equipment, extending their service life and lowering repair costs.

• • Sewerage Charge Exemptions: Many municipalities charge properties based on the volume of rainwater they drain into public sewers. On-site RWH systems often qualify large venues for significant exemptions or reductions in these drainage fees.

• • Green Certification Premiums: Implementing RWH contributes directly to LEED or BREEAM points, which can lower insurance premiums and increase the facility’s commercial market value.

Investment Viability

• • Payback Period: Case studies for large-scale sports infrastructure indicate a return on investment (ROI) within 11.9 years. Given that these systems typically last 40 years, they offer nearly three decades of nearly free water.

• • Government Subsidies: Various regional governments offer subsidies and tax incentives for installing RWH systems, further reducing initial setup costs.

• • Mandate Compliance: Many urban jurisdictions now mandate RWH for large buildings (over 100 sq. m. in some regions) to avoid steep penalties for non-compliance.

End-to-End Rainwater Harvesting Solutions for Sports Complexes by JMR InfraSolutions

JMR InfraSolutions delivers comprehensive, end-to-end irrigation and water management solutions for modern sports complexes by embedding sustainability directly into sports infrastructure. Acting as a single-point turnkey partner, JMR oversees the complete lifecycle of irrigation systems from initial planning and engineering to installation, automation, and intelligent monitoring ensuring efficient water use and consistently high-performing playing surfaces.

Core Components of JMR Solutions

• • Integrated Rainwater Harvesting (RWH): JMR designs systems specifically for large-scale sports environments, capturing runoff from stadium roofs and paved surfaces to reduce dependency on municipal water.

• • Smart Irrigation Systems: Their solutions utilize IoT-enabled sensors to provide real-time monitoring and precise control. This ensures full coverage and healthy turf while minimizing water waste.

• • Wastewater Treatment & Reuse: Beyond harvesting rain, JMR implements treatment systems that make on-site wastewater safe for reuse in field irrigation and cooling processes.

• • Turnkey Project Execution: They serve as a single partner for the concept, planning, engineering, and final delivery of technology-enhanced stadiums and modular sports complexes.

Key Advantages for Facility Managers

• • Operational Efficiency: By combining RWH with smart irrigation, facilities can maintain optimal playing surfaces with minimal resource use and lower maintenance effort.

• • Environmental Compliance: JMR systems align with international safety and quality standards, helping facilities meet 2026 regulatory mandates for groundwater recharge and water conservation.

• • Customization: Solutions are tailored to the specific climatic and environmental needs of each site, whether it is a high-performance modular stadium or a multi-sport training ground.

Service Scope

• • Infrastructure Construction: Building specialized sports surfaces, including natural and artificial turf that integrates with drainage systems.

• • Advanced Water Distribution: Installing drip and sprinkler systems that deliver water directly to root zones to minimize evaporation.

• • Maintenance & Support: Providing turnkey support from the initial installation phase through ongoing system maintenance.

Create Water-Smart Sports Complexes with JMR InfraSolutions

JMR InfraSolutions delivers integrated rainwater harvesting solutions for sports complexes, engineered to work seamlessly with turf irrigation, drainage networks, and overall facility water demand. From intelligent catchment design and efficient storage to filtration, reuse, and compliance, our systems help sports facilities optimize water usage, lower operating costs, and strengthen long-term sustainability.

Work with JMR InfraSolutions to implement scalable, future-ready rainwater harvesting systems that support high-performance sports infrastructure.
Connect with our experts to plan a smarter water management strategy for your sports complex.
